Der gewählte Artikel hat die Bestellnummer 00000177.
Artikel-Gruppe Best.-Nr. Artikel Bild Preis
in Euro		 Bestell-Menge

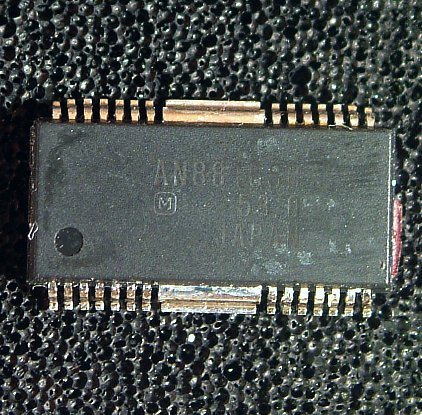

904 00000177 AN8816SB (4ch. Linear Driver IC for CD/CD-ROM) (Fin-attached 28-lead SOP package (HSOP-042-0400)) AN8816SB 4ch. Linear Driver IC for CD/CD-ROM Overview: The AN8816SB is a 4ch. driver using the power operational amplifier method. It employs the surface mounting type package superior in radiation characteristics. Features: • Wide output D-range is available regardless of reference voltage on the system • Setting of driver input/output gain enabled by external resistance • 2ch. independently controllable PC (Power Cut) feature built-in • Thermal shut down circuit (with hysteresis) built-in • Proper heat of IC controllable by separating the output supply and setting each independently for 2ch. • Construction of 5V supply enabled by external PNP Tr • Accessary operational amplifier built-in • Relatively easy pattern design by separating and concentrating the input line and output line Application: Actuator for CD/CD-ROM, motor driver 0.49

AN8816SB 4ch. Linear Driver IC for CD/CD-ROM Overview: The AN8816SB is a 4ch. driver using the power operational amplifier method. It employs the surface mounting type package superior in radiation characteristics. Features: • Wide output D-range is available regardless of reference voltage on the system • Setting of driver input/output gain enabled by external resistance • 2ch. independently controllable PC (Power Cut) feature built-in • Thermal shut down circuit (with hysteresis) built-in • Proper heat of IC controllable by separating the output supply and setting each independently for 2ch. • Construction of 5V supply enabled by external PNP Tr • Accessary operational amplifier built-in • Relatively easy pattern design by separating and concentrating the input line and output line Application: Actuator for CD/CD-ROM, motor driver

Angabe Neu oder Gebraucht




  Datenblatt
